Technical data
|
Construction Material : |
Body : AISI 316 // Aluminum
Rotors : AISI316// PPS (ryton) O-rings : PTFE , FKM , NBR |
| Port size : | 1 1/2″ BSP (G) female threaded
DN 25 ANSI-150 RF Flanged (on request) DN 25 PN16 Flanged (on Request) |
| Flow rate : | 15 ~ 250 L/min // 3.9 ~ 66 US gal/min |
| Pressure ratings : | 30 Bar // 440 PSI |
| Max. Temperature : | 150°C |
| Max. Viscosity : | 1,000,000 Cps |
| Accuracy : | ± 0.5% |
| Repeatability : | ± 0.03 % |
| Output pulse resolution: | Reed switch: 14 Pulse / Lt, 53 Pulse / US Gallon
Hall effect : 56 Pulse / Lt , 212 Pulse / US Gallon |

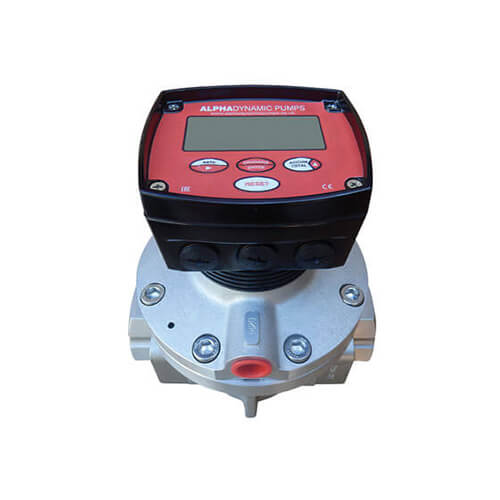

| Available digital displays : | AMR100 , F012 , F110 |
| Available Batch controllers : | F030 , F130 |
Benefits
- Measurement according to the oval gear principle
- For thin-bodied up to viscous liquids
- Low friction resistance
- Very precise dosing possible
- High resistance
- Wide range of viscosities can be covered
- Can also be used for pulsating volume flows
- Low pressure loss
